I am having probs with the ATLS Traffic Stopper Rollable. None of my trafic is stopping at the crossing.

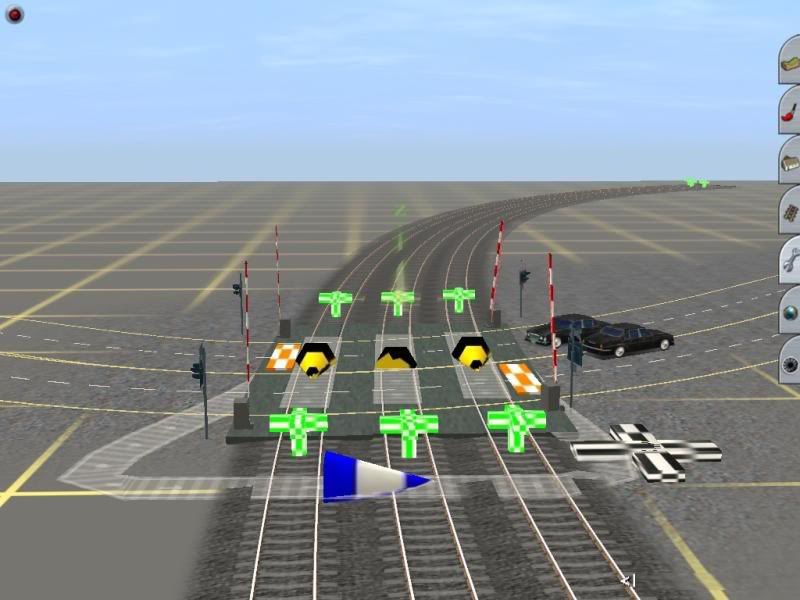

Is that setup right?
Is that setup right?
ATLS Traffic Stopper Rollable probs
- Thread starter hyderpotter
- Start date
motorbreath
Earth Rocker
It looks as though your triggers are in the middle of the street, instead of being placed back where you want the train to trigger the crossing and traffic stop. Unless you have them there for something else.
hyderpotter
New Laptop
The triggers are on the tracks. I am using a new addon called Level Crossing Base (2T) 464202:1346.
The Yellow boxs are not trigge.
hyderpotter
New Laptop
hyderpotter
New Laptop
But I find that the cars do not stop even when the barriers are down.
motorbreath
Earth Rocker
Have you set up your ATLS components? Use the "?" button and set them to a channel, and to LCM etc. The instructions for each device appear when you hit the "?" button, which is the edit properties button. Also, there is an ATLS tutorial. Just use the forum search feature.
hyderpotter
New Laptop
Yes I have and there is no setting for the Traffic Stopper Rollable.
motorbreath
Earth Rocker
I am not yet familiar with the rollable one yet. I think the stopper itself does not have any settings since it is connected to the slave and acts as an invisible crossing. I am also unfamiliar with the crossing you are using, so someone else may have to jump in and help. You did set the triggers too, right?
motorbreath
Earth Rocker
Also, I can't see your spline circles, and I hate to ask a stupid question...
Did you connect the road to the stoppers? I only ask since it is hard to tell from your pictures.
Did you connect the road to the stoppers? I only ask since it is hard to tell from your pictures.
hyderpotter,
What you need to do is have one "Slave" for each Traffic Stopper, and your triggers on the tracks need to be much further out for the crossing to work effectively. Your controller, and all the other assets, need to be set to the same channel, and your controller and slaves need to be set in "LCM" (Level Crossing Mode), which is reached by having -1 route.
I do hope this herlps, because ATLS is a great system to use once you know how!
Happy Trainzing,
Scott.
What you need to do is have one "Slave" for each Traffic Stopper, and your triggers on the tracks need to be much further out for the crossing to work effectively. Your controller, and all the other assets, need to be set to the same channel, and your controller and slaves need to be set in "LCM" (Level Crossing Mode), which is reached by having -1 route.
I do hope this herlps, because ATLS is a great system to use once you know how!
Happy Trainzing,
Scott.
hyderpotter
New Laptop
I know, I spot it it when I seen the picture. It now been updated.
hyderpotter
New Laptop
hyderpotter,
What you need to do is have one "Slave" for each Traffic Stopper, and your triggers on the tracks need to be much further out for the crossing to work effectively. Your controller, and all the other assets, need to be set to the same channel, and your controller and slaves need to be set in "LCM" (Level Crossing Mode), which is reached by having -1 route.
I do hope this herlps, because ATLS is a great system to use once you know how!
Happy Trainzing,
Scott.
In one of the picture at http://www.boatztrainz.co.uk/ATLS3.pdf
Only one Slave is use for the traffic stopper.
In one of the pictues at http://www.boatztrainz.co.uk/ATLS2.pdf
The triggers are near the crossing
I am using a Level Crossing Base
Last edited:
Hi,
It looks like the usual problem with non-stopping cars.... 'Spline points too close to the Stopper'. You need to have SEVERAL car lengths between the nearest road spline point at the connection to the Stopper.
From your photo, it looks like there is a spline point, (on the bend) very close to the Stopper. You will have to move the spline point further away. This will mean a less steep bend but no other option.
Boat
It looks like the usual problem with non-stopping cars.... 'Spline points too close to the Stopper'. You need to have SEVERAL car lengths between the nearest road spline point at the connection to the Stopper.
From your photo, it looks like there is a spline point, (on the bend) very close to the Stopper. You will have to move the spline point further away. This will mean a less steep bend but no other option.
Boat
hyderpotter
New Laptop
It should only stop in driver.
There's really nothing special about the rollable version of the traffic stopper - I just needed a version that would work on a slope, and though it would be handy if it worked for multi-lane traffic too. In all other respects it should work exactly the same as Boat's stopper. Personally I'd suspect a spline point too close to the stopper. If you're using TS2010 the distance you need to allow seems to have increased - I'd estimate at least 4 car lengths are needed now.
Paul
Paul
hyderpotter
New Laptop
I have fix the prob now. I had to move my tacks as well.
skidmark22
Retired MX Mis.Test Pilot
I hope I am putting this in the correct thread. Also not trying to hijack it. Just looking for an answer to why car keep going thru the crossing when the gates are down and the train is traveling like in this image.
